Lifting MagnetELM Series
Product Introduction
More power; more safety. Light weight and compact. 3.5 times safety factor and no electricity power supply require. Workable for move plate steel, block steel and round steel, such as machine parts, press molds, plastic molds and iron material .....etc.
Our ELM series permanent magnetic lifters have below features:
- A very new design. Make use of magnetic principle, characteristic of light weight and less dimension. There are 6 models of magnetic lifting device ELM series, according to different capacity of loading. The maximum capacity of loading is 3000 kgs.
- Made by most improvement in the world of permanent magnet “Rare earth magnet”.
- Permanent magnet, required no electric power supply, thus eliminating hazards due to failure of wiring system of by service interruption.
- 3.5 times “safety coefficient”, makes more power and more safety.
- Appearance of light weight and small dimension, easy to carry and move. The point of design as nothing complex, easy and generous.
- With CE certificated. Stickers of warning and operation manual, makes users easy to operate.
- Applications: suitable for move plate steel, block steel and round steel, such as machine parts, press molds, plastic molds and iron materials, etc.
-
- Made by "Rare Earth" magnet with technology of improvement.
- All new models with "light weight" "less dimension" and "lower price".
- Made by permanent magnet, require no power supply, thus eliminating hazards due to failure wiring system as electric type.
- It features powerful magnetic force, with 3.5 times safety coefficient makes more safety in use.
Applications
Suitable for move plate steel, block steel and round steel, such as machine parts, press molds, plastic molds and iron material .....etc.
- SAFETY FACTOR x 3.5TIMES (ELM-3000 × 3.0 times)
The capacity of magnet indicated as 1/3.5 of holding power, it means the real holding power is 3.5 times of capacity. For example the capacity of ELM-600 is 600kg (1320lbs) but the real holding power is 2100kg (4620lbs).
The large safety coefficient is concideration for ensuring the use in safety.
MAXIMUM LIFTING RANGE
Form of material Steel plate
Round steel
;MODEL Max. lifting capacity Min. thickness required Max. lifting capacity Max. diameter Maximum length kgf lbs mm inch kgf lbs mm inch mm inch ELM-100 100 220 15 0.59" 60 132 150 5.9" 500 20" ELM-300 300 660 25 0.98" 180 400 250 9.8" 800 32" ELM-600 600 1320 30 1.18" 360 800 350 13.8" 1200 48" ELM-1000 1000 2200 40 1.57" 600 1320 450 17.8" 1500 60" ELM-2000 2000 4400 55 2.16" 1200 2640 550 21.6" 1800 70" ELM-3000 3000 6600 60 2.36" 1800 3960 650 25.6" 2300 90" The above diagrams is only for reference. The operator should be test and chech if it is in safe range before lift away the workpiece of steel. Other wise, it will be not responsibility by producer for any accidents.
-
MODEL Capacity A B C D E F G H Weight SAFETY
FACTORkgf lbf mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch kg lbs ELM-100 100 220 107 4.2 84 3.3 129 5.0 123 4.8 60 2.4 73 2.9 46 1.8 30 1.2 2.5 5.5 x3.5 times ELM-300 300 660 180 7.1 155 6.1 157 6.2 185 7.3 90 3.5 95 3.7 51 2.0 41 1.6 8.6 18.9 ELM-600 600 1320 255 10 224 8.8 213 8.4 263 10.4 115 4.5 122 4.8 77 3.0 52 2.0 21 46 ELM-1000 1000 2200 294 11.5 259 10.1 286 11.3 377 14.8 163 6.4 171 6.7 97 3.8 87 3.4 46 101 ELM-2000 2000 4400 422 16.6 380 15 355 14.0 515 20.3 216 8.5 215 8.5 105 4.1 123 4.8 118 260 ELM-3000 3000 6600 587 23.1 521 20.5 423 16.7 710 28 216 8.5 222 8.7 158 6.2 80 3.2 181 398 x3.0 times -
The load of holding power will changes depending on the thickness, attractive face roughness and quality of material and clearance between the workpiece with magnet.(See as the graphs as below)
Chart of difference in holding power by thickness
Thickness Percentage of lifting capacity mm inch ELM-3000 ELM-2000 ELM-1000 ELM-600 ELM-300 ELM-100 T1 up 60 up 2.36” 100% 100% 100% 100% 100% 100% T2 55 2.36” 95% T3 50 1.97” 90% 95% T4 45 1.77” 85% 90% T5 40 1.57” 80% 85% T6 35 1.38” 70% 75% 90% T7 30 1.18” 60% 65% 80% T8 25 0.98” 50% 55% 70% 90% T9 20 0.79” 40% 45% 60% 75% 90% T10 15 0.59” 30% 35% 50% 60% 70% T11 10 0.39” 20% 25% 35% 45% 50% 70% T12 5 0.20” 10% 15% 20% 25% 30% 40%
Chart of difference in holding power by attractive face Chart of difference in holding power by material quality
roughness For all models For all models
Calculating Formula for“Range of Lifting Capacity”→ (TxFxMxCapacity of Lifter)
Example: Terms of workpiece: T8, F1 and M290% x 125% x 85% x 600kgf (ELM-600)=573kgf
Operations

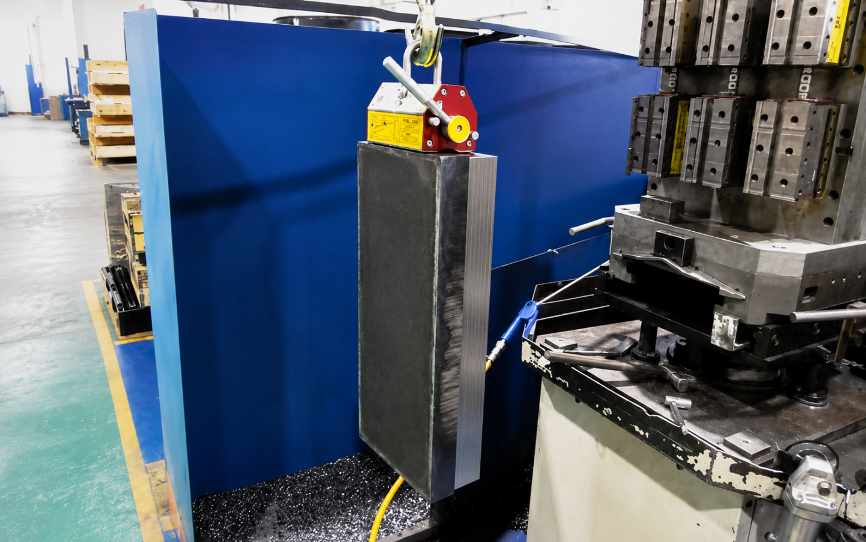

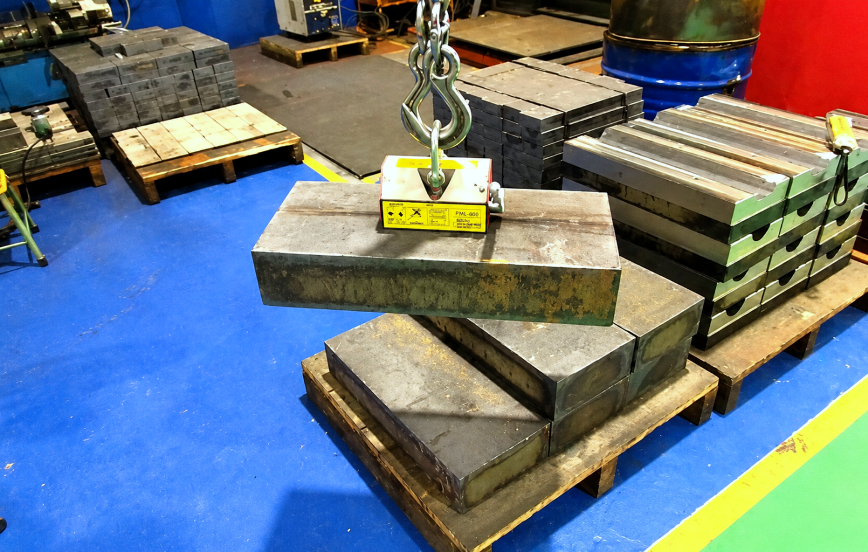

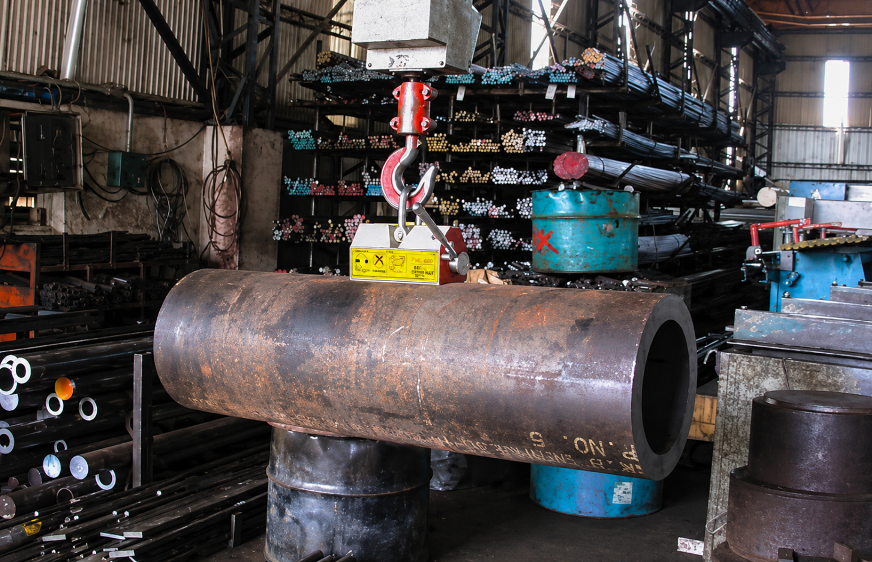

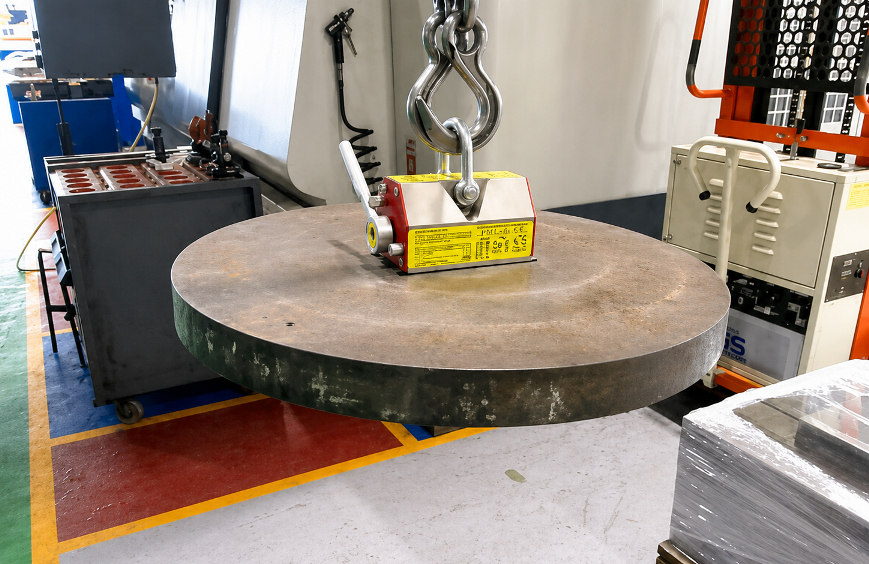

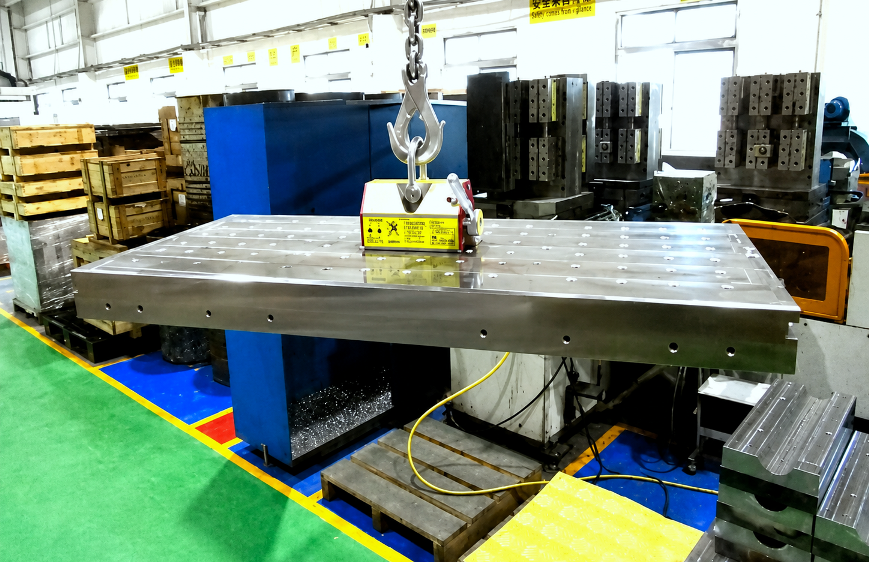

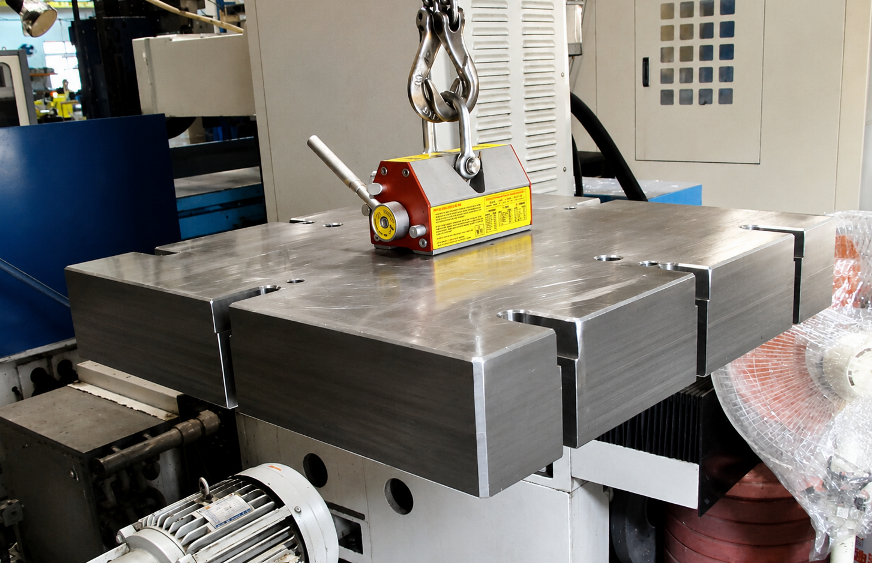

With ON/OFF switch, it is very easy and convenient to operate. See as the example pictures as below
Notice:
Never moves the handle to "ON" side, except on an iron object of holding.
